TMBP 20E
Brand name: SKF
Model: -
Short Description: he TMBP 20E is an adapter type puller for dismounting deep groove ball bearings in blind housings (i.e. when accessing the ball bearing is not possible through the outer ring or through the bore) with shaft dimensions between 30 mm and 160 mm (1.18 in and 6.3 in). The use of extension rods allows a long reach of up to 583 mm (23 in).
With 6 sets of adaptors, a wide of range of deep groove ball bearings can be dismounted
New ball adapters are more durable
Spanner stop function on spindle for easy and safe handling
Special nose piece helps in minimizing damage to shaft and improves puller stability
Nosepiece with self-locking function |
 |
|
TMMD 100
Brand name: SKF
Model: -
Short Description: The SKF TMMD 100 is especially designed to allow easy and quick dismounting of deep groove ball bearings with interference fit on both rings. The puller is suitable for use in both blind housings and shaft applications. In addition to dismounting open bearings, the TMMD 100 can be used to dismount sealed bearings after the removal of the seal. The puller kit contains six sets of different size puller arms, two spindles and one handle packed in a carrying case. The TMMD 100 is suitable for dismounting up to 71 different SKF deep groove ball bearings from shaft diameter ranging between 10 and 100 mm (0.4 - 3.9 in).
The claws are especially designed to facilitate a precise fit in the bearing?s raceways, providing good grip and allowing the application of higher dismounting forces
Each puller arm is fitted with a spring for easy installation
The puller arms are made of a single piece, laser-cut hardened-steel for strength and longevity
Arm sizes 4, 5 and 6 are fitted with filling plates to accommodate a wide range of bearings
The hexagon head of the spindle is equipped with an anti-slip pin, which prevents the spanner from sliding down the spindle during dismounting
The rotation angle of the claw has been limited to allow easy insertion
The designation is laser-engraved on the arms allowing easy identification and selection
|
|
|
TMIP
Brand name: SKF
Model: -
Short Description: The SKF Internal Bearing Puller Kits are designed for dismounting bearings
from housings, where the fit is on the outer ring. The pullers are constructed
for optimum strength and durability and suit a wide range of bearing bore
diameters. A sliding hammer allows high impact forces to be applied and is
ergonomically designed to enhance user safety. |
|
|
ป้อมยามสำเร็จรูป
Brand name: Best
Model: G0001
Short Description: ป้อมยามสำเร็จรูป
ขนาด 1.50 x 1.50 x 2.40 เมตร |
|
|
TMMA..H/SET
Brand name: SKF
Model: -
Short Description: ? A set consisting of a hydraulically assisted SKF EasyPull together with a
tri-section pulling plate, TMMS series, and a puller protection blanket
facilitate an easy, safe and virtually damage-free dismounting
? Especially suitable for dismounting spherical roller and CARB toroidal
roller bearings, and other components such as pulleys and flywheels
? A puller protection blanket, TMMX series, made of a strong transparent
material allows the user to visually follow the dismounting procedure.
While dismounting, the blanket helps to protect from flying fragments of
bearings or other components, thereby enhancing user safety
? A sturdy custom-made storage case with room for all parts minimises
the risk of loosing or damaging the set?s components |
|
|
TMMP
Brand name: SKF
Model: -
Short Description: The SKF TMMP heavy duty jaw pullers provide perfect alignment and shaft protection as well as an exceptional grip for medium to large size bearings.
3 arm jaw pullers with a maximum withdrawal force of 6 to 15 tonnes (13 500 to 33 700 lbf)
Unique pantograph system for grip width adjustment that counteracts misalignment during operation
Fast, efficient and smooth handling
Blackened, high quality steel with optimum corrosion resistance |
|
|
|
|
|
TMHP
Brand name: SKF
Model: -
Short Description: he SKF hydraulically-assisted pullers TMHP 15, TMHP 30 and TMHP 50 provide new combined forces of puller power and safety. They are self-centring pullers for the occasions when large forces are inevitable.
Hydraulically assisted pullers with a maximum withdrawal force of 15, 30 or 50 tonnes 33 700 to 112 000 lbf)
Pantograph system for ultimate alignment of withdrawal forces and minimised risk of damaging shaft or bearing
Extreme forces applied with ease (self-centring, lifting handle, eye bolt, etc.)
Can be supplied with or without the SKF hydraulic pump TMJL 100 |
|
|

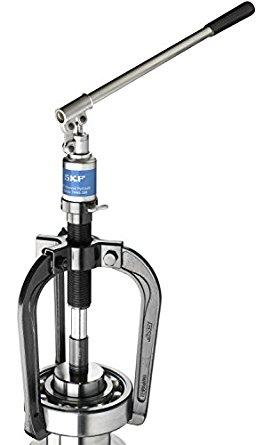

TMHP 10E
Brand name: SKF
Model: -
Short Description: The SKF TMHP 10E jaw puller kit is equipped with a hydraulic spindle, which facilitates effortless bearing dismounting up to 100 kN (11.2 ton US). The versatile puller kit includes three different arm sizes and can be assembled as a two-arm puller or a three-arm puller depending on the space and demand of the application.
High load rating of 100 kN (11.2 ton US) makes the puller suitable for a variety of dismounting jobs
The 3 different arm sizes, with a maximum effective arm length of 200 mm (7.9 in), make the TMHP 10E suitable for use in a wide range of applications
The self-locking arms minimise the risk of the puller slipping from the application when under load
Hydraulic spindle facilitates effortless dismounting
The hydraulic spindle is equipped with a safety valve, which minimises the risk of puller overload by limiting the applied force to 100 kN (11.2 ton US)
Long stroke of hydraulic spindle, 80 mm (3.1 in), facilitates dismounting in one operation
Extension pieces of the hydraulic spindle allow quick adaptation to pulling length
The spring-loaded centre point of the hydraulic spindle allows easy centring of the puller on the shaft without damaging it |
|
|
TKDT10
Brand name:
Model: -
Short Description: The SKF TKDT 10 is suitable for a wide range of applications
and has the ability to have two SKF temperature probes
connected. A large back-lit LCD display helps ensure that the
temperatures can be easily read in almost all lighting
conditions.
? Contact temperature measurement range from ?200 to +1 372 ?C
(?328 to +2 501 ?F).
? Supplied with temperature probe TMDT 2-30 (max. 900 ?C / (1 652 ?F));
suitable for many direct contact applications.
? Can be used with any SKF temperature probe, including the TIH P20
probe supplied with SKF Induction Heaters.
? Can be used with an optional second SKF temperature probe enabling
either probe temperature, or the temperature difference between the
probes, to be displayed.
? Temperature readings displayed in either ?C, ?F, or Kelvin (K).
? Temperature display can be frozen for ease of reading.
? Minimum, maximum and average temperatures can be displayed,
together with a time stamp.
? User selectable auto power off function increases battery life. |
|
