| Product Information : |
|
|
| Product Name: |
|

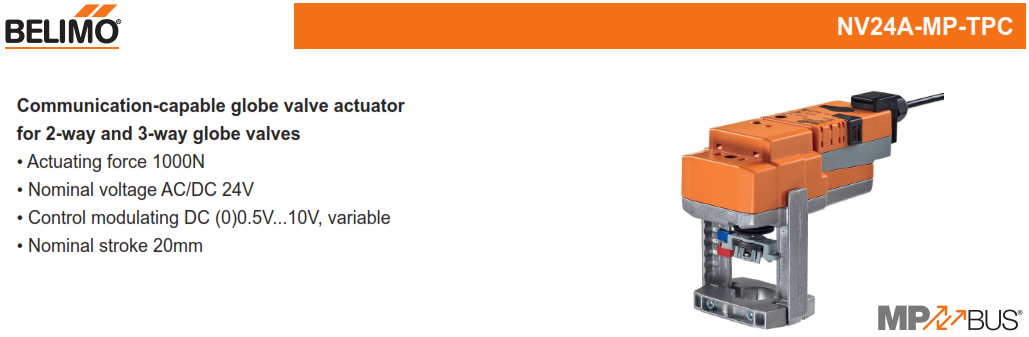

NV24A-MP-TPC Globe valve actuator , 1000N |
|
| Product Category: |
|
ผลิตภัณฑ์เครื่องทำความร้อน, ความเย็น, อุณหภูมิ
|
| Product Sub-Category: |
|
BELIMO,Globe Valves and Actuators เครื่องทำอุณหภูมิความร้อน ความเย็น
|
| Brand: |
|
BELIMO |
| Product Type : |
|
สินค้า, ผลิตภัณฑ์
|
| Short Description : |
|
Globe Valve Actuators, 1000N
NV24A-TPC
NV230A-TPC
NV24A-SZ-TPC
NV24A-MP-TPC |
| |
|
|
| |
|
|
1000N
|
1500N
|
2500N
|
4500N
|
|
New Generation Globe Valve Actuator
|
NV..A
|
SV..A
|
EV..A
|
RV..A
|
|
Open/Close, -point, AC/DC 24V,
50/60Hz
|
NV24A-TPC
|
SV24A-TPC
|
EV24A-TPC
|
|
|
AC 2 0V, 50/60Hz
|
NV2 0A-TPC
|
SV2 0A-TPC
|
EV2 0A-TPC
|
|
|
Modulating control signal DC (0)0.5-10V, Feedback DC (0)0.5-10V, 50/60Hz
|
NV24A-SZ-TPC
|
SV24A-SZ-TPC
|
EV24A-SZ-TPC
|
RV24A-SZ
|
|
Multifunction, MP-Bus, 50/60Hz Control signal variable DC (0)0.5- 2V, Feedback signal variable DC (0)0.5-10V
|
NV24A-MP-TPC
|
SV24A-MP-TPC
|
EV24A-MP-TPC
|
RV24A-MF
|
|
Running Time
|
150s (variable on -MF and -MP)
|
|
Stroke
|
20mm
|
20mm
|
40mm
|
40mm
|
|
Sound Power Level
|
Max. 55dB(A)
|
Max. 45dB(A)
|
Max. 55dB(A)
|
Max. 65dB(A)
|
|
Manual Override
|
Gear disengagement with push-button
|
|
Electrical Connection
|
1m cable, -TPC (Terminal with 1m cable)
|
|
Direction of Rotation
|
Selected by switch
|
|
Position Indicator
|
Mechanical 5..20mm
|
Mechanical 5..40mm
|
|
Degree of Protection
|
IP54
|
|
EMC
|
CE in accordance with 2004/108/CE
|
|
Certification IEC/EN
|
Certified to IEC/EN 607 0-1, IEC.EN 607 0-2-14
|
|
Ambient Temperature
|
0°C..+50°C
|
|
Non-operation temperature
|
-40°C..+80°C
|
|
Ambient Humidity
|
95% r.h., non-condensing
|
