Win Win Co.,Ltd : MC(Outside Diameter clamping)

PAGE VIEW : 32,243

Name :

MC(Outside Diameter clamping)

Category :

Sub - Category :

Brand :

Riken Seiki

Model :

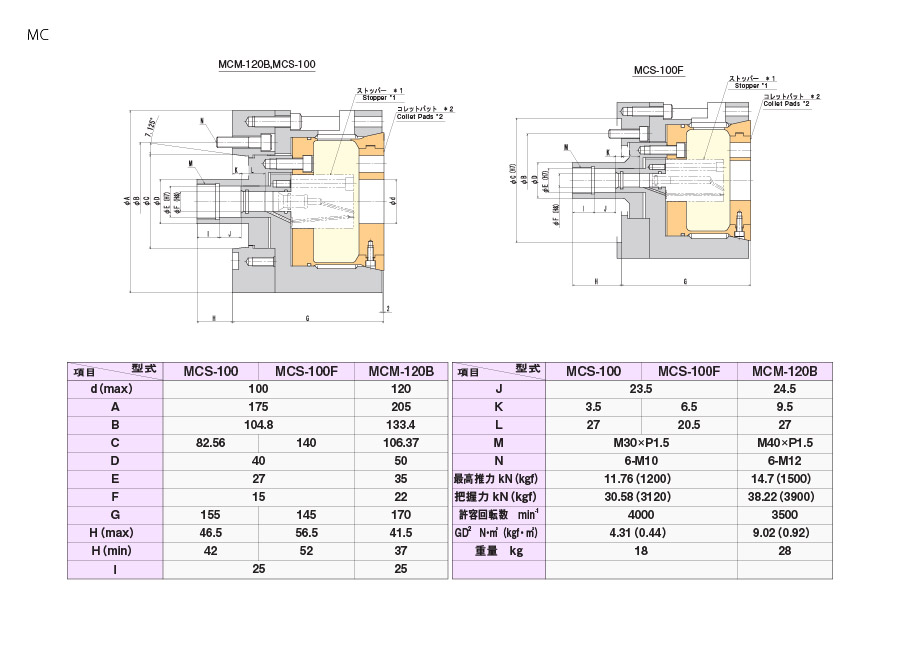

MCS-100, MCS-100F, MCM-120B

Product Type :

Short Description :

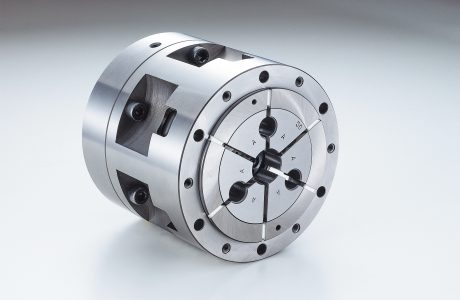

RIKEN SEIKI Type: MC(Outside Diameter clamping) Model: MCS-100, MCS-100F, MCM-120B

This chuck was developed exclusively for secondary processing of automobile parts.

Sitting detection with standard specifications and coolant blowing within the main shaft are both possible.

It also allows for the exchanging of parts with those of MC inside diameter chucks, which belong to the same product group.

NOTE: Collet type is MC type
