PCV: Standard Power Vise
Power Vise
- Precision power vise with adjustable torque

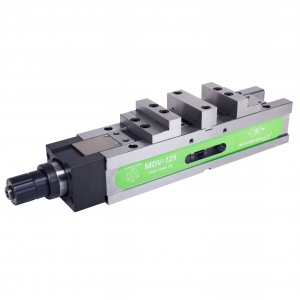

MDV: Double Power Vise
Samchully Double Power Vise / MDV-125's Video URL: https://youtu.be/eST0SSWcEdk
Power Vise
- Consists of Two movable Jaws and One fixed Center Jaw for Double claming
- Equipped with step Jaw & Middle Jaw suitable for various workpieces
- Seal structure makes preventing the inner body from inflowing dust
- Realize High Clamping Force by Mechanical gravity Device

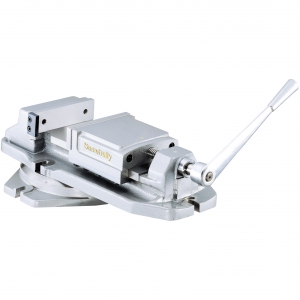

VS: Standard Machine Vise
Machine Vise
- Standard machine vise
FV: Flexible Vise
Multi Clamping Vise
- Flexible Clamping
- Multiple Clamping
- Jaw Stroke 5mm
| FV-5060 | |||
|---|---|---|---|
| Jaw Width | [mm] | 50 | |
| Jaw Height | [mm] | 25 | |
| Max.Opening | [mm] | 1EA | 500 |
| 2EA | 215 | ||
| 3EA | 120 | ||
| 4EA | 75 | ||
| Total Height | [mm] | 75 | |
| Slider Height | [mm] | 50 | |
| Total Width | [mm] | 50 | |
| Slider Length | [mm] | 600 | |
| Max.Gripping Force | [kN(kgf)] | - | |
| Weight | [kgf] | 15 | |
PSV: Short-Type Power Vise
Power Vise
- Short-body precision power vise with adjustable torque
PLV: Long Stroke Power Vise
Power Vise
- Long-body precision power vise with adjustable torque
| PLV-125(5") | PLV-160(6") | PLV-200(8") | ||
|---|---|---|---|---|
| Jaw Width | [mm] | 125 | 160 | 200 |
| Jaw Height | [mm] | 50 | 60 | 70 |
| Max.Opening | [mm] | 420 | 354 | 405 |
| Total Height | [mm] | 135 | 160 | 180 |
| Slider Height | [mm] | 85 | 100 | 110 |
| Total Width | [mm] | 135 | 170 | 214 |
| Slider Length | [mm] | 700.5 | 647.5 | 723.5 |
| Max.Gripping Force | [kN(kgf)] | 35(3571) | 60(6122) | 60(6022) |
| Weight | [kgf] | 47 | 70 | 110 |
PDV: Direct Drive Power Vise
Power Vise
- Step-jaw precision power vise with adjustable torque
DDV: Draw-Down Type Power Vise
Power Vise
- Draw-down precision vise with adjustable torque
MMV: Mechanical Machine Quick Vise
Machine Vise
- 3-step mechanical machine quick vise
APV: Air Vise
Air Vise
- Standard Air vise
For catalog of other types please send a request to est@winwin.th.com
