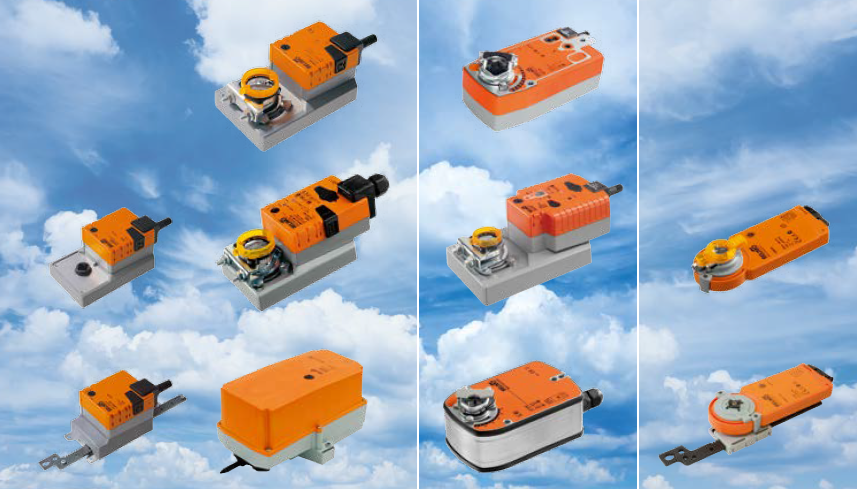

Air damper actuators without emergency control function |
|||||||||||
| Nominal torque | 5 Nm | 10 Nm | 20 Nm | 40 Nm | |||||||
| Damper size up to approx. | 1 m² | 2 m² | 4 m² | 8 m² | |||||||
|
Nominal voltage |
Auxiliary switch |
LM..A | NM..A | SM..A | GM..A | ||||||
| Open-close, 3-point | |||||||||||
| 24 V | LM24A | NM24A | SM24A | GM24A | |||||||
| 1 | LM24A-S | NM24A-S | SM24A-S | ||||||||
| 230 V | LM230A | NM230A | SM230A | GM230A | |||||||
| 1 | LM230A-S | NM230A-S | SM230A-S | ||||||||
| Modulating (2 – 10 V) | |||||||||||
| 24 V | LM24A-SR | NM24A-SR | SM24A-SR | GM24A-SR | |||||||
| 230 V | LM230ASR | NM230ASR | SM230ASR | ||||||||
| Parameterisable | |||||||||||
| 24 V | LM24A-MP | NM24A-MP | SM24A-MP | GM24A-MP | |||||||
|
Air damper actuators without emergency control function |
|||||||||||
|
Open-close, 3-point |
|||||||||||
|
24 V
|
LM24A-TP | NM24A-TP | SM24A-TP | GM24A-TP | |||||||
| 1 | LM24A-S-TP | NM24A-S-TP | SM24A-S-TP | ||||||||
|
230 V
|
LM230A-TP | NM230A-TP | SM230A-TP | GM230A-TP | |||||||
| 1 | LM230A-S-TP | NM230A-S-TP | SM230A-S-TP | ||||||||
|
Modulating (2 – 10 V) |
|||||||||||
|
24 V |
LM24A-SR-TP | NM24A-SR-TP | SM24A-SR-TP | GM24A-SR-TP | |||||||
|
230 V |
LM230ASR-TP | NM230ASR-TP | SM230ASR-TP | ||||||||
|
Parameterisable |
|||||||||||
|
24 V |
LM24A-MP-TP | NM24A-MP-TP | SM24A-MP-TP | GM24A-MP-TP | |||||||
|
Air damper actuators with emergency control function |
|||||||||||
| Nominal torque | 2.5 Nm | 4 Nm | 10 Nm | 20 Nm | 30 Nm | ||||||
| Damper size up to approx. | 0.5 m² | 0.8 m² | 2 m² | 4 m² | 6 m² | ||||||
|
Nominal voltage |
Running time motor |
TF.. | LF.. | NF..A.. | SF..A.. | EF..A.. | |||||
| Open-close |
without auxiliary |
with 1 auxiliary |
without auxiliary |
with 1 auxiliary |
without auxiliary |
with 2 auxiliary |
without auxiliary |
with 2 auxiliary |
without auxiliary |
with 2 auxiliary |
|
| 24 V | 40 – 75 s | LF24 | LF24-S | ||||||||
| 75 s | TF24 | TF24-S | NF24A | NF24A-S2 | SF24A | SF24A-S2 | EF24A | EF24A-S2 | |||
| 230 V | 40 – 75 s | LF230 | LF230-S | EF230A | EF230A-S2 | ||||||
| 75 s | TF230 | TF230-S | |||||||||
|
AC 24 – 240 V |
NFA | NFA-S2 | SFA | SFA-S2 | |||||||
| Modulating (2 – 10 V) |
without auxiliary |
without auxiliary |
without auxiliary |
with 2 auxiliary switches SPDT |
without auxiliary switch |
with 2 auxiliary switches SPDT |
without auxiliary switch |
with 2 auxiliary switches SPDT |
|||
| 24 V | TF24-SR | LF24-SR | NF24A-SR | NF24A-SR-S2 | SF24A-SR | SF24A-SR-S2 | EF24A-SR | EF24A-SR-S2 | |||
| 230 V | TF230-SR | ||||||||||
| Parameterisable |
without auxiliary |
without auxiliary |
without auxiliary |
without auxiliary |
without auxiliary |
||||||
| 24 V | 40 – 75 s | LF24-MFT2 | |||||||||
| 75 s | TF24-MFT | NF24A-MP | SF24A-MP | EF24A-MP | |||||||
| Characterised Control Valves - CCV | ||
| Valves | Description | Actuators |
| • R2..-S.. (2-way) | Cold water and hot water systems | • Rotary Actuators: |
| • R3..-S.. (3-way) | • Internal thread: DN15...50 | TR, LR, NR, SR and GR Series |
| • R6..AO (2-way) | • Flange PN16: DN65...150 | • Mechanical Fail-Safe Rotary Actuators: TRF, L(R)F, NRFA and SRFA Series |
| • Fast-Running: | ||
| LRQ, NRQ and SRQ Series | ||
| • Electronic Fail-Safe Actuators: GRK Series |
||
| Pressure Independent Quick Compact Valve - PIQCV | ||
| Valves | Description | Actuators |
| Internal thread: | Cold water and hot water: | • Rotary Actuators: CQ24A |
| • C2..QP.. (2-way, | • Nominal diameter DN15/20/25* | CQ24A-SR CQ230A CQ24A-MPL CQK24A CQK24A-SR |
| pressure-independent zone valve, standard) | • PN25 | |
| • C2..QPT-.. (2-way, | • Fan coils | |
| pressure-independent zone valve, with PT ports) | • Cooling ceilings | |
| • Zone air heaters / air coolers | ||
| • Floor heaters | ||
| • Radiators | ||
| Energy Valves - EV | |
| Valves | Description |
| • EV..+BAC (2-way) | • For modulating water-side control of air handling systems and heating systems |
| • P6..-BAC (2-way) | • Communication via BACnet IP, BACnet MS/TP, Belimo MP-Bus or conventional |
| control | |
| • Nominal diameter: DN15...150 | |
| • Internal thread: DN15...50 | |
| • Flange PN16: DN65...150 | |
| Electronic Pressure Independent Valves - EPIV | ||
| Valves | Description | |
| • EP..+MP (2-way) | For modulating water-side control of air handling systems and heating systems | |
| • P6..-MP (2-way) | • Nominal diameter: DN15...150 | |
| • Internal thread: DN15...50 | ||
| • Flange PN16: DN65...150 | ||
| Globe Valves and Actuators | ||
| Valves | Description | Actuators |
| • H2..X-S (2-way) | • For open/close cold and warm water systems | • New Generation Globe Valve Actuators: NV..A..-TPC (1000N) |
| • H3..X-S (3-way) | • For modulating water side control of air handling units and heating systems | SV..A..-TPC (1500N) |
| • H6..W-SP (2-way) | • Nominal diameter: DN15...250 | EV..A..-TPC (2500N) |
| • H7..W-S (3-way) | • With Internal thread or Flange PN16 or PN25 | RV..A..-TPC (4500N) |
| • H7..W-D (3-way) | • Electronic Globe Valve Actuators: LVK..A..-TPC (500N)* | |
| • H6..X-S(P) (2-way) | NVK..A..-TPC (1000N) | |
| • H7..X-S (3-way) | SVK..A..-TPC (1500N)* | |
| AVK..A..-TPC (2000N)* | ||
| EVK..A..-TPC (2500N) | ||
