BELIMO Globe Valves
H2..X-S, 2-way, with internal thread
H3..X-S, 3-way, with internal thread
H6..W-SP, 2-way, with flange PN16
H7..W-S, 3-way, with flange PN16
H7..W-D, 3-way, with flange PN16
Last Update : 15:42:02 18/11/2015
H6..X..-S(P)2 Globe valve, 2-way, Flange, PN 25
Globe valve, 2-way, Flange, PN 25
? For closed (high temperature) hot water and steam systems in the non-critical range
? For water-side modulating control of air-handling and heating systems
Brand : REGIN
Model : RCF-230D
Room thermostat for fan-coil applications
with on/off outputs.
Intended to control heating and/or cooling in 2- or 4-pipe
installations. Setpoint and fan speed are set using the buttons on the front.
Brand : REGIN
Model : RC-DO Room controller with display
Room controller with display
? Awarded design
? Simple installation
? On/Off or 0...10 V control
RC-DO is a room controller from the Regio Mini series
intended to control heating and cooling in a zone control
For control of electric heating coils or radiators. The controllers pulse the whole load on/off and utilise
time-proportional triac control. Automatic control function adaptation, P- or PI-control. The controllers
can also be controlled by an external 0...10 V DC signal.

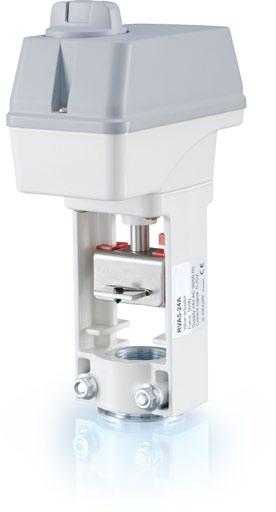

Valve actuator for 0(2)...10 V control signal.
Force 500 N.
Valve actuator for control of Regin valves. The actuator has automatic self stroke adjustment and
can be operated manually.
? Protection class IP54
? Stroke 10...30 mm
? Manual operation
? Automatic stroke adjustment
? Easy to mount the valve
? Position indication

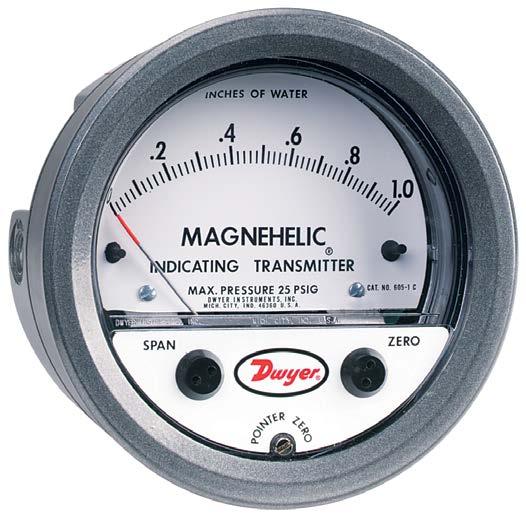

The SERIES 605 Magnehelic Indicating Transmitter provides for both visual
monitoring and electronic control of very low differential pressure. The Series 605
is ideal for control applications in building HVAC systems where local indication is
desired during routine maintenance checks or necessary when trouble shooting the
system. The easily read dial gage is complimented by the two-wire, 4-20 mA control
signal utilizing the time-proven Dwyer? Magnehelic gage mechanical design and
Series 600 transmitter technology. The two-wire design with terminal strip on the rear
simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply.

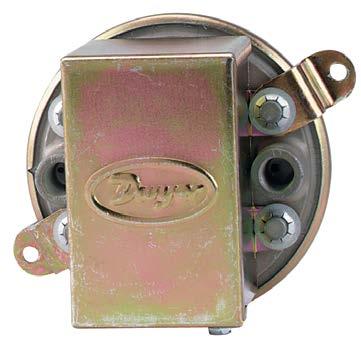

? Adjustment knob changes switching pressure easily with a pressure gage reducing
components for application
? Low cost device makes it an excellent solution in BAS and HVAC applications
requiring duct control and monitoring
? Relay contact allows simple integration with DDC or building systems
? Air filter and ventilator monitoring ? Ventilation duct monitoring
? Industrial cooling circuits ? Fan heater overheating protection
? Fire-protection damper control ? Heat exchanger frost protection
The Series MS Magnesense? Differential Pressure Transmitter is an extremely
versatile transmitter for monitoring pressure and air velocity. This compact package is
loaded with features such as:
? Field selectable English or Metric ranges
? Field upgradeable LCD display
? Adjustable damping of output signal (with optional display)
? Ability to select a square root output for use with pitot tubes and other
similar flow sensors
Along with these features, the patented magnetic sensing technology provides exceptional
long term performance and enables the Magnesense? Differential Pressure Transmitter to
be the single solution for your pressure and flow applications.
The SERIES THC simultaneously measures and controls temperature and humidity.
The unit offers a 3-digit red display for temperature indication and a 3-digit green
display indicating humidity. The Series THC is equipped with four independent relays,
two for temperature control and two relays for humidity control.
The THC Temperature/Humidity Switch accepts up to two temperature probe inputs
(sold separately) and a humidity sensor. A humidity sensor with 0 to 1 V, 3 V (THC-P
sold separately), or 4 to 20 mA output can be used with the Series THC.

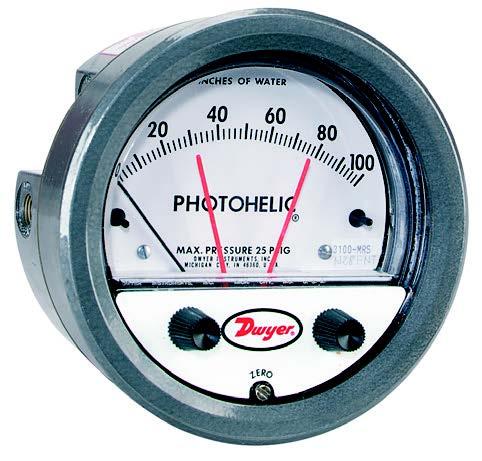

? Gage reading unaffected by switch operation and will continue to read pressure even
during power loss
? Zero and range adjustments outside of gage means no disassembly in normal
? Solid-state design allows for switching in high cycle rate applications without
? Pneumatic conveying
? Air conditioning systems
? Clean rooms

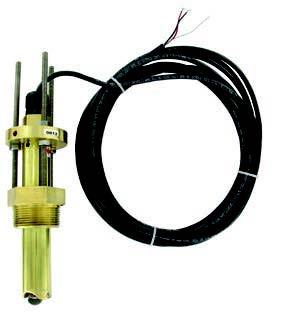

The SERIES PFT Insertion Paddlewheel Flowmeters are used to monitor liquid flow
rates in pipes from 1-1/2 to 40? and is available in brass or 316 SS body. The unit
outputs a frequency proportional pulsed or 4 to 20 mA output. The pulse models are
a square wave output signal with frequency proportional to the flow velocity and the 4
to 20 mA models have a linear output of the velocity with 4 mA equal to 0 ft/s and 20
mA equal to 25 ft/s.
The SERIES AN2 Indicating Alarm Annunciator provides visible and audible alarms for
up to eight inputs. Audible alarm conditions can be acknowledged, reset, or silenced
either via the front panel push buttons or the rear terminal block. The annunciator also
has two SPDT relay outputs that can be used to initiate external alarms, buzzers, or
The Series WPH2 pH Testing Pen accurately monitors pH and temperature levels in a variety of
applications. This pocket-sized tester is ideal for pH level measurements in lab environments,
industrial plants, or field environmental testing. It features an easy to replace electrode and
automatically recognizes up to 3 calibration buffer solution ranges. Both pH and temperature, in
both English and Metric units, appear on the large dual display. Both the electrode and battery
compartment caps are sealed to provide an IP65 weatherproof rating.
The microprocessor based pH/ORP/Temperature Meter offers quick response and
high accuracy. Simultaneously measure and display pH from 0 to 14 pH (0 to 1999 mV) and
temperatures up to 200?F (100?C). Model PHO-1 meter features manual or automatic
temperature compensation, auto buffer recognition, and data logging capabilities, and the
recording interval can be defined by the user. The Model PHO-1 accepts any pH electrode
with a BNC connector.
For additional convenience, select model PHO-1K kit, which contains a meter, RS-232 cable,
batteries, software, pH electrode, temperature probe, gender changer, carrying case and
