Page View  3741
Product Information :

Product Name:

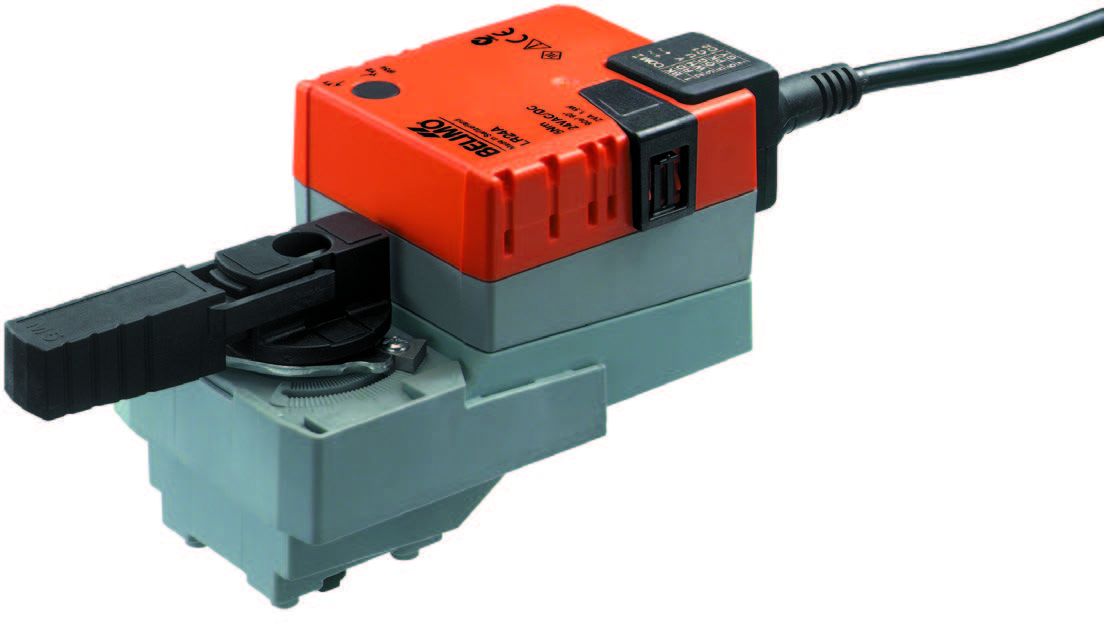

Rotary actuator, Open-close, 3-point, AC/DC 24 V, 5 Nm


Product Category:   ผลิตภัณฑ์เครื่องทำความร้อน, ความเย็น, อุณหภูมิ
Product Sub-Category:   BELIMO,CCV Control Valves and Actuators(เบลิโม,ระบบชีชีวี,ระบบความร้อน ความเย็น อุณหภูมิ)
Brand:   BELIMO
Product Type :   เครื่องมือ, เครื่องจักรและอุปกรณ์
Short Description :   Rotary actuator for ball valves ? Nominal torque 5 Nm ? Nominal voltage AC/DC 24 V ? Control Open-close, 3-point


Technical_data
Electrical data Nominal voltage AC/DC 24 V
  Nominal voltage frequency 50/60 Hz
  Nominal voltage range AC 19.2...28.8 V / DC 19.2...28.8 V
  Power consumption in operation 1.5 W
  Power consumption in rest position 0.2 W
  Power consumption for wire sizing 2 VA
  Connection supply / control Cable 1 m, 3 x 0.75 mm²
  Parallel operation Yes (note the performance data)
Functional data Torque motor Min. 5 Nm
  Manual override Gear disengagement with push-button, can be locked
  Running time motor 90 s / 90°
  Sound power level motor max. 35 dB(A)
  Position indication Mechanically, pluggable
Safety Protection class IEC/EN III Safety extra-low voltage
  Protection class UL UL Class 2 Supply
  Degree of protection IEC/EN IP54
  Degree of protection NEMA/UL NEMA 2, UL Enclosure Type 2
  EMC CE according to 2004/108/EC
  Certification IEC/EN IEC/EN 60730-1 and IEC/EN 60730-2-14
  Certification UL cULus according to UL 60730-1A, UL 60730-2-
 14 and CAN/CSA E60730-1:02
  Mode of operation Type 1
  Rated impulse voltage supply / control         0.8 kV
  Control pollution degree 3
  Ambient temperature -30...50°C
  Non-operating temperature -40...80°C
  Ambient humidity 95% r.h., non-condensing
  Maintenance Maintenance-free
Weight Weight approx. 0.55 kg
