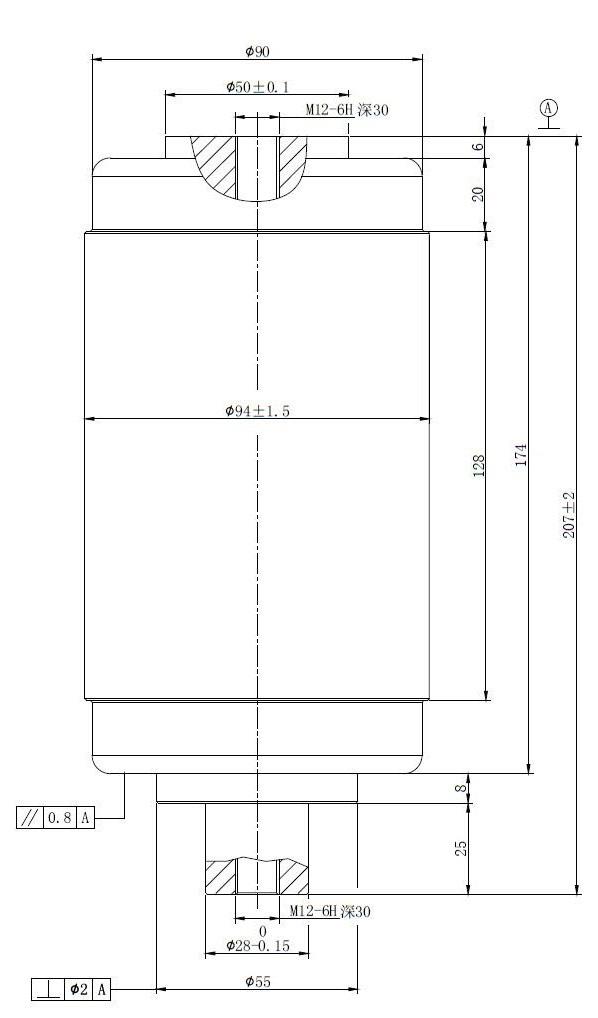

Model No.: TD 12kv 1250A 31.5KA (JUC619A) Ѵҧ٭ҡ vacuum interrupter for VCB

Main technical parameters

Items

Value

Rated voltage

12KV

Rated current

1250A

Rated frequency

50Hz

Rated power frequency withstand voltage

48kV

Rated lightning impulse withstand voltage

85kV

Rated short circuit breaking current

31.5KA

Rated short circuit making current(peak value)

80KA

Breaking operations under rated short circuit breaking current

30 times

Rated short time withstand current

31.5kA

Rated withstand current(peak value)

80kA

Rated duration of short circuit

4s

Mechanical life

10000 times

Closing force due to bellows and atmosphere

120±50N

Force required to hold contacts opening at full stroke

190±50N

Circuit resistance at lowest rated contacts force

≤20μΩ

Storage life

20 years

Limiting abrasion of contacts

3mm





Mechanical requiements of vacuum circuit breaker

Items

Value

Clearance between opening contacts

11±1mm

Average opening speed(Contacts closing position~75% contacts opening distance)

1.1±0.2 m/s

Average closing speed(30% contacts opening distance~contacts closing position)

0.6±0.2 m/s

Rated contacts pressure

3150±200N

Contacts bouncing duration at closing operation

≤2ms

Contacts re-bouncing clearance at opening operation

≤2mm

Synchronism of three phases

≤1ms


Remarks:

* It Needs additional insultating protection.
