HCJ5 CKJ5 1.14kv 1000A Ѵҧ٭ҡ VI vacuum interrupter for vacuum contactor


Թ :    HCJ5 CKJ5 1.14kv 1000A Ѵҧ٭ҡ VI vacuum interrupter for vacuum contactor
觫 (Order Code) :    TTN00-09438
(Model) :    CKJ5 1.14kv 1000A Ѵҧ٭ҡ VI
(Brand) :    Jucro

Ҥһ :  0
ҤҾҧʵ͡ :  0
ʹԹѴ :  0
Save :   0%
Stock :
Ṻ :

Clearance Product Fullsize

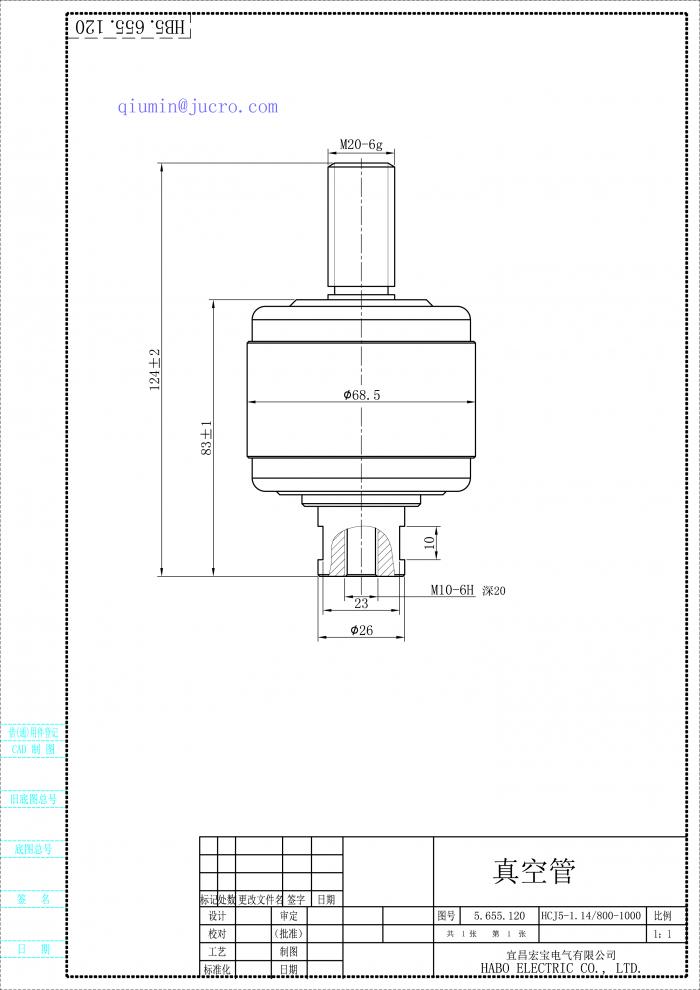

HCJ5 1.14 kv 1000A Ѵҧ٭ҡ vacuum interrupter for vacuum contactor

1. Brief introduction

The interrupter adoption porcelain and ceramics makes to insulate the outer shell. Contact is WCCu metal alloy material advanced technique of adoption Including bulk small. Breaking the abiliting strong the life span is long, maintenanle is simple, no explosion dangerous, no contaminate and the noise is low. It is extensive to used for coal mine , chemical engineering, Petroleum metallurgy etc. department, more than keeping with at the multifarious operation with the bad place usage of environmen



2. Vacuum Tube main technical parameter

No.

Parameter name

Unit

Value

1

Rated voltage

kV

1.14

2

Rated current

A

1000

3

Rated frequency

Hz

50

4

Rated put through current

A

10000

5

Rated breaking current

A

8000

6

Limiting breaking current

A

10000

7

Rated short-time withstand current

A

8000

8

Rated short-time withstand voltage(1 min)

KV

10

9

Mechanical life

time

1000000

10

Rated breaking time

AC3 Series

time

150000

AC4 Series

6000

11

Automatic closing force of the contacts

N

70±20

12

Force required to hold contacts open at full stork

N

90±20

13

Contact automatic blocking ability loop electrical resistance

μΩ

≤80

14

Contact-wear allowance tickness

mm

2

15

Shelf life

year

20

16

Internal gas pressure

Pa

≤1.33×10-3
