HCJ3 12KV 630A Ѵҧ٭ҡ VI vacuum interrupter for vacuum contactor


Թ :    HCJ3 12KV 630A Ѵҧ٭ҡ VI vacuum interrupter for vacuum contactor
觫 (Order Code) :    TTN00-09436
(Model) :    12KV 630A Ѵҧ٭ҡ VI
(Brand) :    Jucro

Ҥһ :  0
ҤҾҧʵ͡ :  0
ʹԹѴ :  0
Save :   0%
Stock :
Ṻ :

Clearance Product Fullsize

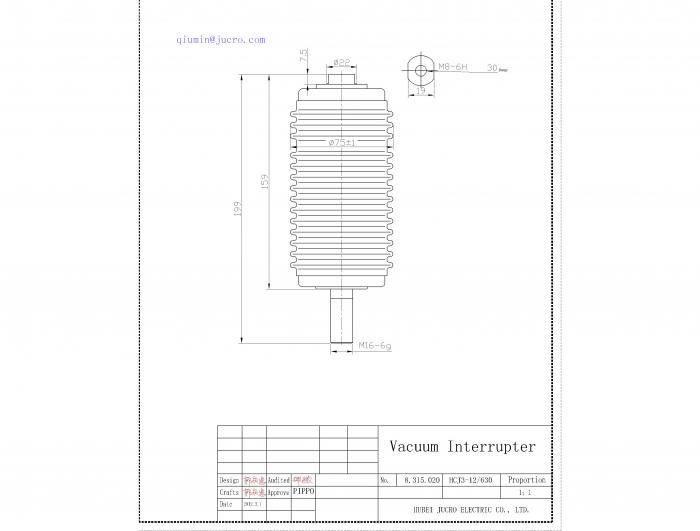

HCJ3 12 KV 630A Ѵҧ٭ҡ vacuum interrupter for vacuum contactor

1. Brief introduction

The interrupter adoption porcelain and ceramics makes to insulate the outer shell. Contact is WCCu metal alloy material advanced technique of adoption Including bulk small. Breaking the abiliting strong the life span is long, maintenanle is simple ,no explosion dangerous, no contaminate and the noise is low . The pack vacuum contactor can operate the ebery kind of electric appliances equipments, and fuse match f-c cabinet



 2. Vacuum Tube main technique parameter

No.

Parameter name

Unit

Value

1

Rated voltage

kV

12

2

Rated current

A

630

3

Rated frequency

Hz

50

4

Rated making current

kA

6.3

5

Rated breaking current

kA

5.04

6

Limiting breaking current

kA

6.3

7

Rated short-time withstand current

kA

6.3

8

Rated short-time withstand voltage

kV

42

9

Rated lighting impulse voltage

kV

75

10

Circuit resistance at lowest rated contacts force

μΩ

≤80

11

Electrical life

Times

250000

12

Mechanical life

times

500000

13

Closing force due to bellows and atmosphere

N

70±20

14

Force required to hold contacts open at full stroke

N

100±30

15

Limiting abrasion of contacts

mm

3

16

Internal gas pressure

Pa

≤1.33×10-3

17

Storage life

years

20
