HVJ5 CKJ5 1.14kv 125A ͹ᷤ٭ҡ vacuum contactor


Թ :    HVJ5 CKJ5 1.14kv 125A ͹ᷤ٭ҡ vacuum contactor
觫 (Order Code) :    TTN00-09422
(Model) :    CKJ5 ͹ᷤ٭ҡ
(Brand) :    Jucro

Ҥһ :  0
ҤҾҧʵ͡ :  0
ʹԹѴ :  0
Save :   0%
Stock :
Ṻ :   CKJ5 ͹ᷤ٭ҡ

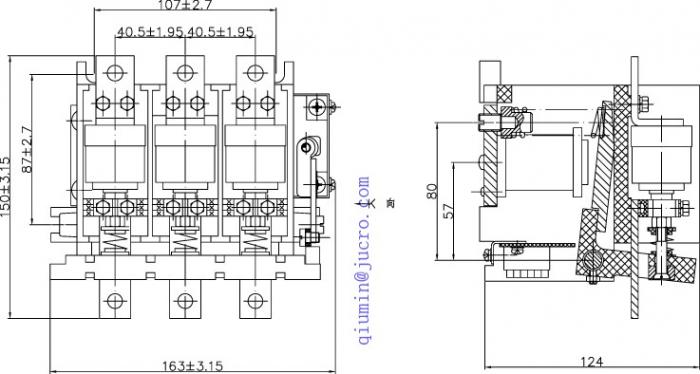

Clearance Product Fullsize
  1. 1.   General

HVJ5 1.14kv 125A AC vacuum contactor is designed for long-distance making and breaking of circuit, frequent starting and controlling of AC motors in the power systems, with AC 50Hz-60Hz, rated voltage of 1,140V and rated current to 125A. It also can be equipped with thermal relay and all kinds of protection apparatus like electromagnetic starter, especially applied to explosion-proof starter and so on.

  1. 2.   Main Technical parameter

Product model

Rated voltage (V)

Rated current ( Main Circuit ) A.

Main contacts parameters

Power frequency Voltage
resistance V (effective VALUE).



Main circuit

Control circuit

Distance opening ( mm )

Over travel (mm)

Final pressure (N)



Main circuit

Auxiliary circuit

Control circuit



HVJ5-1.14 / 125

1140

36,110,220,380

one hundred twenty five

1.8 ± 0.2

1 ± 0.2

30 ± 3

4200

2500

2000





Product model

Making capacity

Breaking capacity

Limit breaking current (A)

Electricity life times

Mechanical life times

Overload capacity

AC3

AC4

HVJ5-1.14 / 125

10Ie, 100times

8Ie, 25 times

2000,3 times

60 * 10 4

6 * 10 4

300 * 10 4

8Ie 10S

 Remark : "Ie" is Rated current of Main Circuit.
