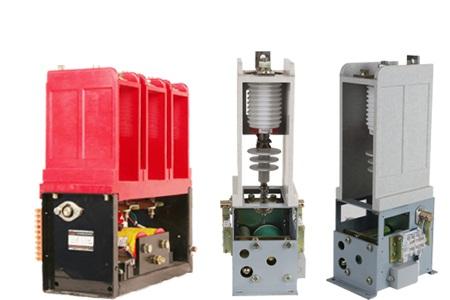

HVJ3 7.2KV Vacuum Contactor  VC  VACUUM CONTACTOR.

1. General

The vacuum contactor is mainly used in the power system with AC 50Hz and rated voltage 7.2kV, for making or breaking circuit and to make electromagnetic starter with suitable protective device and FC switchgear.



2. Working condition:

1) Altitude should not be over 1,000m;

2) Ambient temperature: -5 ~ 40 ° C;

3) Average temperature in 24 hour not exceed 35 ° C;

4) When the highest temperature is 40 ° C, the relative humidity should not be higher than 50%;

5) Pollution degree: class 3.



Main models and technical parameters

Model

Rated voltage (v)

Rated current

( Main Circuit ) (A).

Parameter of main contacts

Power frequency

Withstand voltage

V (effective value)



Main

circuit

Control

circuit

Clearance

(Mm)

Over travel (mm)

pressure (N)



Main

circuit

Auxiliary

circuit

Control

circuit



HVJ3-7.2 / 160

7200

380/220/110

160

3.5 ± 0.3

2 ± 0.2

> 85N

32000

2500

2000



HVJ3-7.2 / 250

7200

380/220/110

250

3.5 ± 0.3

2 ± 0.2

> 85N

32000

2500

2000



HVJ3-7.2 / 400

7200

380/220/110

400

3.5 ± 0.3

2 ± 0.2

> 85N

32000

2500

2000



HVJ3-7.2 / 630

7200

380/220/110

630

3.5 ± 0.3

2 ± 0.2

> 85N

32000

2500

2000



HVJ3-7.2 / 800

7200

380/220/110

800

3.5 ± 0.3

2 ± 0.2

> 85N

32000

2500

2000



HVJ3-7.2 / 1000

7200

380/220/110

1000

3.5 ± 0.3

2 ± 0.2

> 85N

32000

2500

2000





.



Model

Making capacity

Breaking capacity

Limit opening current (A)

Overload

Mechanism life

Weight (kg)

HVJ3-7.2 / 160

10Ie, 100times

8Ie, 25times

10Ie

8Ie, 10s

1million times

25.5

HVJ3-7.2 / 250

10Ie, 100times

8Ie, 25times

10Ie

8Ie, 10s

1million times

25.5

HVJ3-7.2 / 400

10Ie, 100times

8Ie, 25times

10Ie

8Ie, 10s

1million times

25.5

HVJ3-7.2 / 630

10Ie, 100times

8Ie, 25times

10Ie

8Ie, 10s

1million times

25.5

HVJ3-7.2 / 800

10Ie, 100times

8Ie, 25times

10Ie

8Ie, 10s

1million times

25.5

HVJ3-7.2 / 1000

10Ie, 100times

8Ie, 25times

10Ie

8Ie, 10s

1million times

25.5

Note : "Ie" represents the rated current of Main Circuit.
